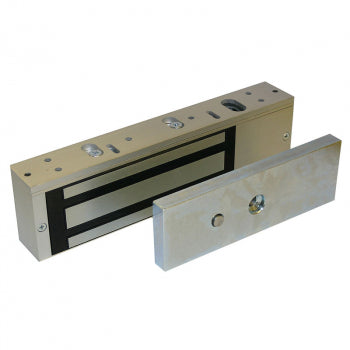

Standard Single Magnet Monitored 12/24vdc 1200lb


Sale price£47.62

VAT included Shipping calculated at checkout


  • CE Marked
  • Monitored
  • Low maintenance with no moving parts
  • Safety bolts prevent the magnet from detaching from the bracket itself
  • Dual voltage 12/24V DC (selectable on site)
  • Suitablefor single or double doors, inward or outward opening
  • For medium to high usage traffic applications
  • Certified to TS010 - Grade 3 - Minimum Holding Force 3000N (675lbf) (306 kgf)
  • Fire rated to EN1634-1 for 30min and 60min timber doors (when used with SINAEM1 intumescent sleeve)
Finish Satin Anodised Aluminium finish
Voltage 12 / 24V DC (Selectable on site)
Tested Holding Force 3300N (740lbf) (336kgf)
Magnetic Lock Size H73 x W266 x D40mm
Armature Plate Size H61 x W185 x D15.5mm
