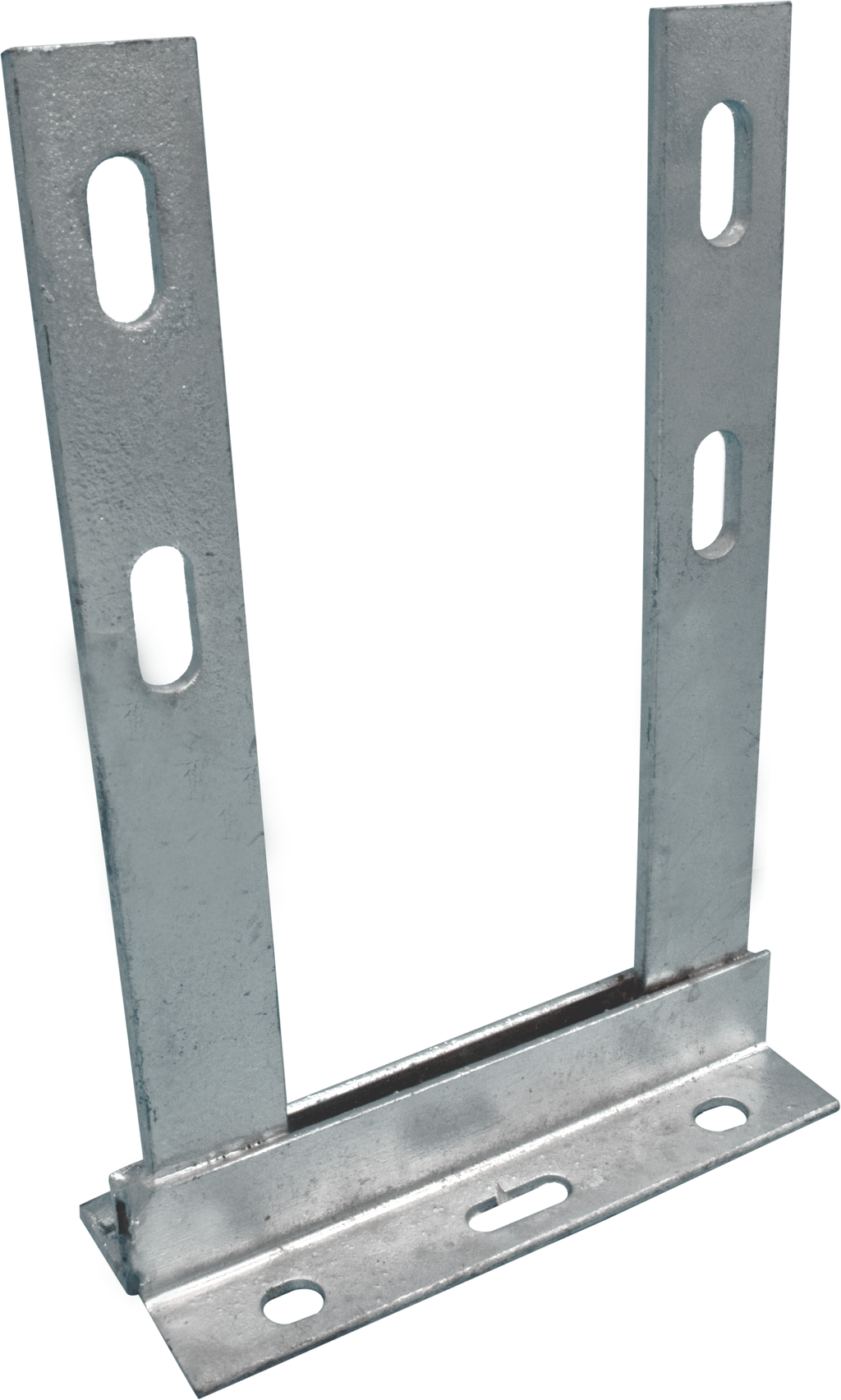

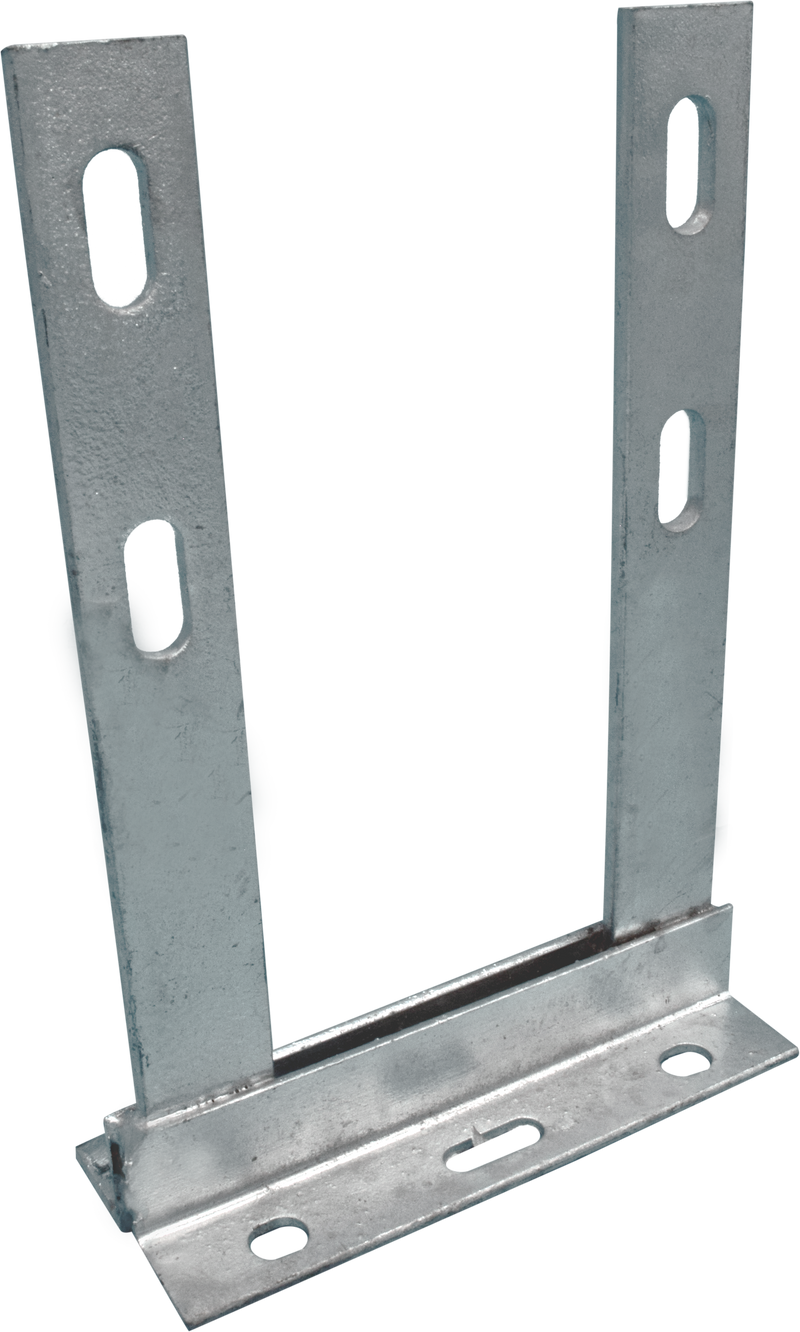

- The 6"x 9" mount has 30x5 mm arms for additional strength and a back with 4 holes and 2 slots for ease of fixing.
- Install with either M8 x 50mm or 80mm Bolts, Plugs and Washer BLAFIX10 or BLAFIX15.
- Painted version available WB21.
|Product||Painted or Galvanised||Length back||Length arms||Stand Off||V Bolts||Bolt Fixings|
|WB21G||Galvanised||153 mm||305 mm||170 mm||AC2 x 2||BLAFIX10 or BLAFIX15 x 4|
Welded brackets are to BS EN ISO 15614 strong and secure joints and where galvanised finish is available this is to BS EN 1461. (part code suffix /G indicates galvanised version)
Painted or Galvanised Galvanised
Bracket Arm Size 152.4mm
Bracket Base Size 228.6mm
