Description
Ajax MotionCam U (PhOD) Jeweller Wireless PIR Motion Detector

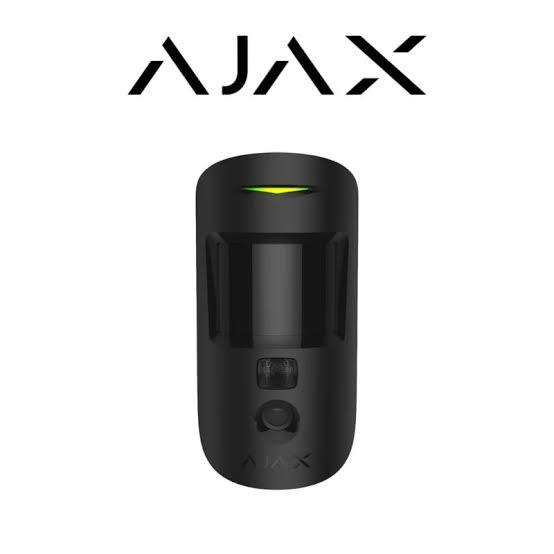

The Ajax MotionCam U (PhOD) Jeweller is a state-of-the-art wireless indoor motion detector that introduces Photo on Demand (PhOD) verification. Finished in a clean matte black casing, this device features a built-in camera that captures crisp snapshot series to show exactly what triggered an alarm within 9 seconds.
Compliant with UK regulations, it gives homeowners, business managers, and monitoring stations the power to check live property conditions instantly. Whether preventing expensive false police call-outs or confirming a break-in, the MotionCam U PhOD delivers complete visual control with zero privacy compromises.
Key Features
- Photo on Demand (PhOD): Take real-time snapshot verification pictures at any moment directly through the Ajax app. Photos can also be automatically triggered by a system alarm, a set calendar schedule, or system arming/disarming events.
- Advanced HDR Image Technology: The integrated camera relies on High Dynamic Range (HDR) exposure balancing to capture clear, well-defined images even in harsh lighting, deep shadows, or high-glare environments.
- Intelligent False Alarm Elimination: Employs a precision optical array combined with the proprietary SmartDetect software algorithm. It analyzes heat patterns to accurately isolate real human movement from thermal glare or moving drafts.
- Smart Pet Immunity: When mounted at the recommended height of 2.4 metres, it ignores domestic pets weighing up to 20 kg and standing under 50 cm tall, maintaining strict coverage without false alarms.
- Dual-Radio Reliability: Uses two secure protocols simultaneously—Jeweller for immediate alarm routing in 0.15 seconds, and Wings for the fast, encrypted transmission of your image packets over long distances.
- Strict Privacy Engineering: Photo delivery features multi-layered data encryption. You can set user-by-user access rules in the app to govern exactly who is authorized to request and view photos.
- Four-Year Battery Autonomy: Arrives ready to deploy straight out of the box with high-grade, pre-installed batteries that power the unit for up to 4 years of continuous, cable-free performance.
Technical Specifications
- SKU / Model: 121298 / 121298.120.BL1 / MotionCam U (PhOD) Jeweller (8EU) ASP
- Colour: Matte Black
- Detection Distance: Up to 12 metres
- Viewing Angles: Horizontal: 88.5° / Vertical: 80°
- Photo Resolutions: Configurable up to 640 × 480 pixels
- Photo Transmission Speed: First photo delivered in under 9 seconds
- Wireless Technology: Jeweller & Wings protocols (868.0–868.6 MHz)
- Maximum Radio Range: Up to 1,700 metres in an open field
- System Compliance: EN 50131 Grade 2 / PD 6662:2017 Certified
- Dimensions: 135 × 70 × 60 mm
What’s in the Box?
- 1 × Ajax MotionCam U (PhOD) Jeweller
- 1 × SmartBracket Mounting Panel
- 2 × Pre-installed CR123A Batteries
- 1 × Hardware installation kit (screws and wall plugs)
- 1 × Quick Start Guide
