Ajax MotionCam Outdoor HighMount (PhOD) Jeweller Wireless High-Mount Detector with Photo on Demand – White (99164)

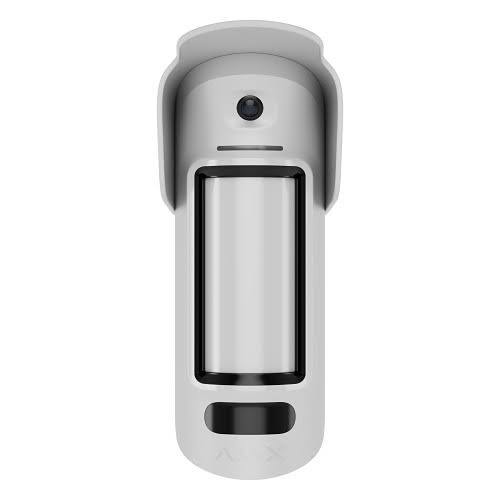

Provide expansive, high-altitude perimeter protection with the Ajax MotionCam Outdoor HighMount PhOD Jeweller (Model: 99164). Specifically engineered for elevated installation points, this professional-grade wireless outdoor motion detector can be safely deployed at a flexible height of 2 to 4 metres from the ground. This unique high-mount design makes it the perfect choice for monitoring expansive premises like industrial yards, commercial complexes, large gardens, and open agricultural compounds.
Equipped with cutting-edge Photo on Demand (PhOD) technology, this advanced sensor allows users or monitoring operators to request instant, high-definition snapshots at any moment through the smart app—ensuring absolute visual proof without delay.
Key Features
- High-Mount Dual Motion Matrix: Combines two independent PIR sensors with a 24 GHz K-band microwave module. Alarms are only triggered when all sensor channels confirm structural movement simultaneously, offering zero blind spots beneath the device and a vertical viewing perspective.
- Intelligent False Alarm Elimination: Employs advanced correlation and spectral digital analysis alongside the proprietary SmartDetect thermal filter. This allows the unit to seamlessly ignore heavy wind drafts, moving tree foliage, birds, or ground pests while remaining highly receptive to human movement.
- Flexible Multi-Trigger Photo Verification: Delivers clear, visual snapshots captured by an integrated HDR camera with automatic infrared (IR) night vision backlighting. Images can be programmed to fire automatically by alarm, schedule, automated smart scenario, or manually on-demand.
- Dynamic Temperature Compensation: Automatically calibration-shifts internal software gain parameters to adapt to hot or freezing conditions. This maintains razor-sharp threat scanning precision even when outdoor ambient temperatures reach up to 30°C or drop significantly.
- Grade 2 Anti-Sabotage Protocols: Protects the device round-the-clock from interference. Features a proactive optical anti-masking matrix, localized magnetometer monitoring, dual front-and-rear tamper alerts, and tilt-displacement notifications.
- Dual-Radio Encrypted Channels: Powered by parallel Jeweller and Wings wireless protocols. Delivers immediate telemetry data in 0.15 seconds and high-speed multi-frame image packages up to 1,700 metres away from your control hub.
Specifications
- Manufacturer Part Number (MPN): AJAX-99164-WHITE / 99164.282.WH1
- Colour: Alpine White
- Installation Height: 2.0 to 4.0 metres
- Detection Sweep Range: Adjustable up to 15 metres (49 ft)
- Viewing Angle: 90° horizontal / 85° vertical with an angle-adjustable swivel mount
- Enclosure Protection Rating: IP55 Weatherproof (operating from -25°C to +60°C)
- Battery Lifespan: Up to 3 years of standalone operation via pre-installed batteries (also supports 12–24 V DC external backup power)
- Central Hub Compatibility: Operates exclusively with Hub 2, Hub 2 Plus, or Hub Hybrid panels
