Description

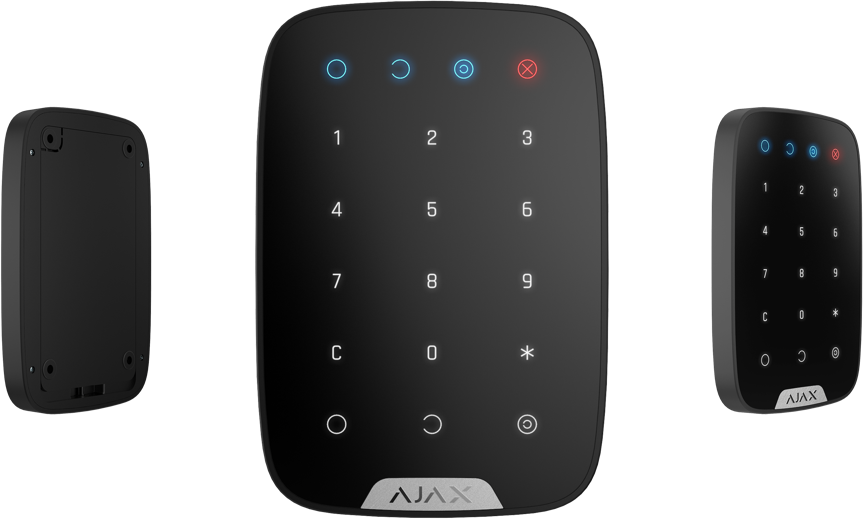

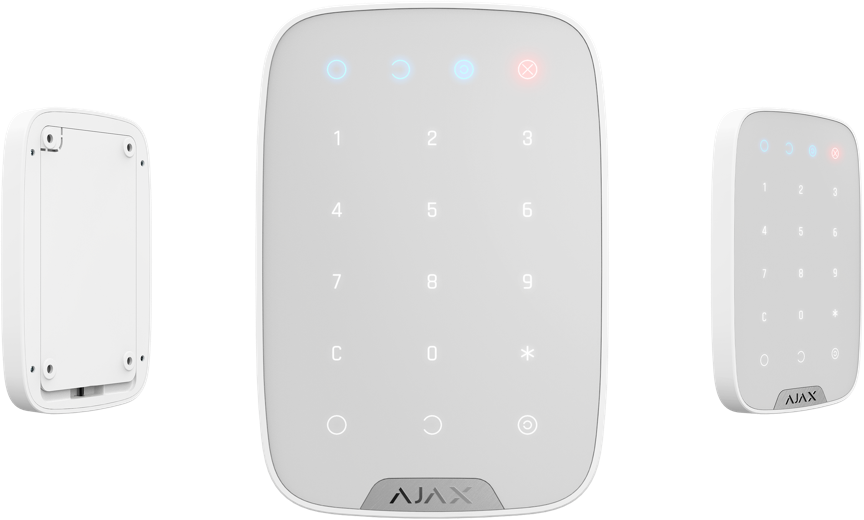

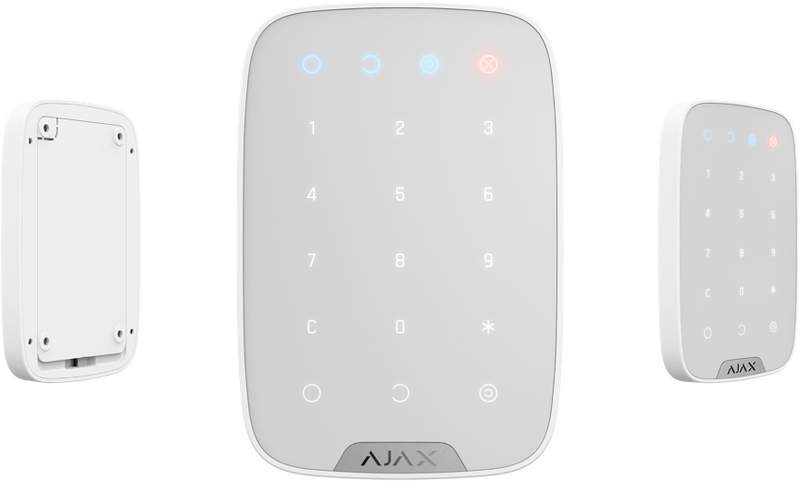

Ajax KeyPad Plus Jeweller Wireless Touch Keypad with Contactless Reader
The Ajax KeyPad Plus Jeweller is a professional-grade wireless indoor touch control panel that takes system accessibility to the next level by combining secure passcode entry with a built-in contactless proxy reader. Finished in a premium satin black casing, this advanced keypad mounts neatly near entrances, allowing users to effortlessly arm, disarm, or part-arm their property.
By supporting encrypted RFID cards and key fobs, KeyPad Plus removes the friction of daily operation. It is the ultimate solution for residential properties, commercial offices, and multi-user industrial environments that demand rapid entry without compromising on Grade 2 security compliance.
Key Features
- Contactless Card & Fob Support: Equipped with an integrated proxy reader compatible with DESFire® technology. Instantly manage security modes using encrypted Ajax Pass cards or Ajax Tag fobs for quick, keyless entry.
- No Account Required for Guests: Eliminates the hassle of creating individual Ajax app accounts for temporary visitors. Simply distribute a pre-configured RFID card or tag to assign specific, traceable access rules to cleaning crews, delivery staff, or employees.
- Silent Duress Code Protection: If an intruder forces code entry, typing a specialized "duress code" safely switches the panel status on-screen to mock a standard disarm while silently routing a critical emergency distress alarm to security teams or a Central Monitoring Station.
- Brute-Force Passcode Guessing Lockout: Built-in security protocols automatically block the panel interface for 3 to 180 minutes if wrong credentials or unverified cards are entered multiple times in a row, freezing local sabotage attempts.
- Intuitive Auto-Wake Display: Features high-precision touch sensitivity with smart button backlighting. The interface activates automatically upon approaching or entry delay triggers, ensuring effortless operation in zero-light conditions.
- Massive Wireless Jeweller Protocol Reach: Relies on the highly secure, two-way Jeweller radio connection to maintain continuous communication with your Ajax Hub at a range of up to 1,700 metres in open areas.
- Remarkable Long-Life Efficiency: Engineered to dramatically lower maintenance overheads. The internal battery architecture powers the unit for up to 3.5 years with the proximity reader enabled, or up to 4.5 years with the reader disabled.
Technical Specifications
- Authentication Options: Passcodes, Ajax Pass (RFID Card), Ajax Tag (RFID Key Fob)
- Card/Fob Encryption Technology: DESFire® (ISO 14443-A 13.56 MHz)
- Max Capacity: Up to 200 personal passcodes and up to 200 cards/fobs
- Wireless Technology: Jeweller Radio Protocol (868.0–868.6 MHz)
- Maximum Radio Range: Up to 1,700 metres (open field)
- Hub Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX/ReX 2 (OS Malevich 2.11 or higher)
- Security Certification: EN 50131 Grade 2 compliant
- Power Supply: 4 × AA batteries (pre-installed)
- Dimensions: 150 × 103 × 14 mm
What’s in the Box?
- 1 × Ajax KeyPad Plus Jeweller
- 1 × SmartBracket Mounting Panel
- 4 × AA batteries (pre-installed)
- 1 × Installation hardware and screw kit
- 1 × Quick Start Manual
